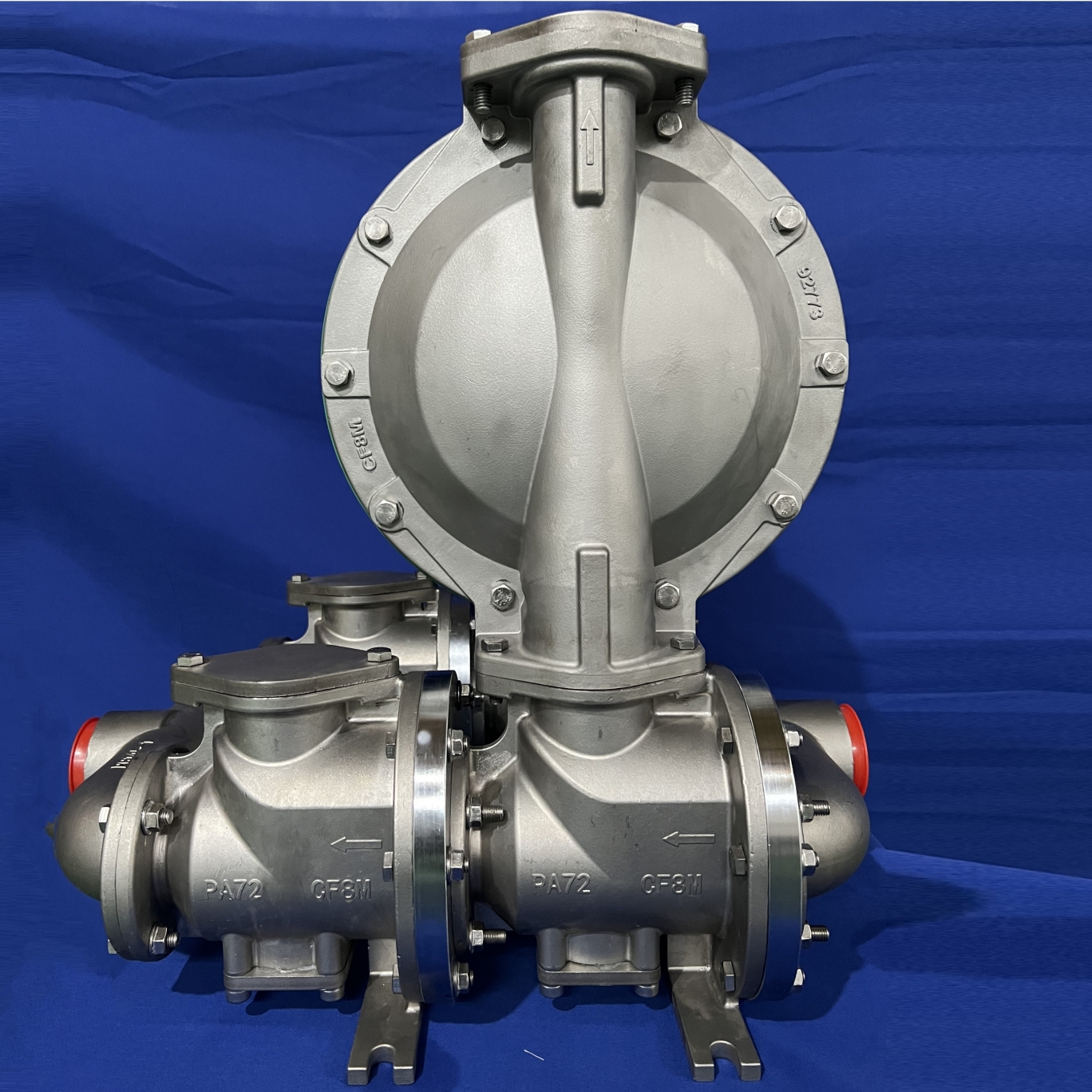

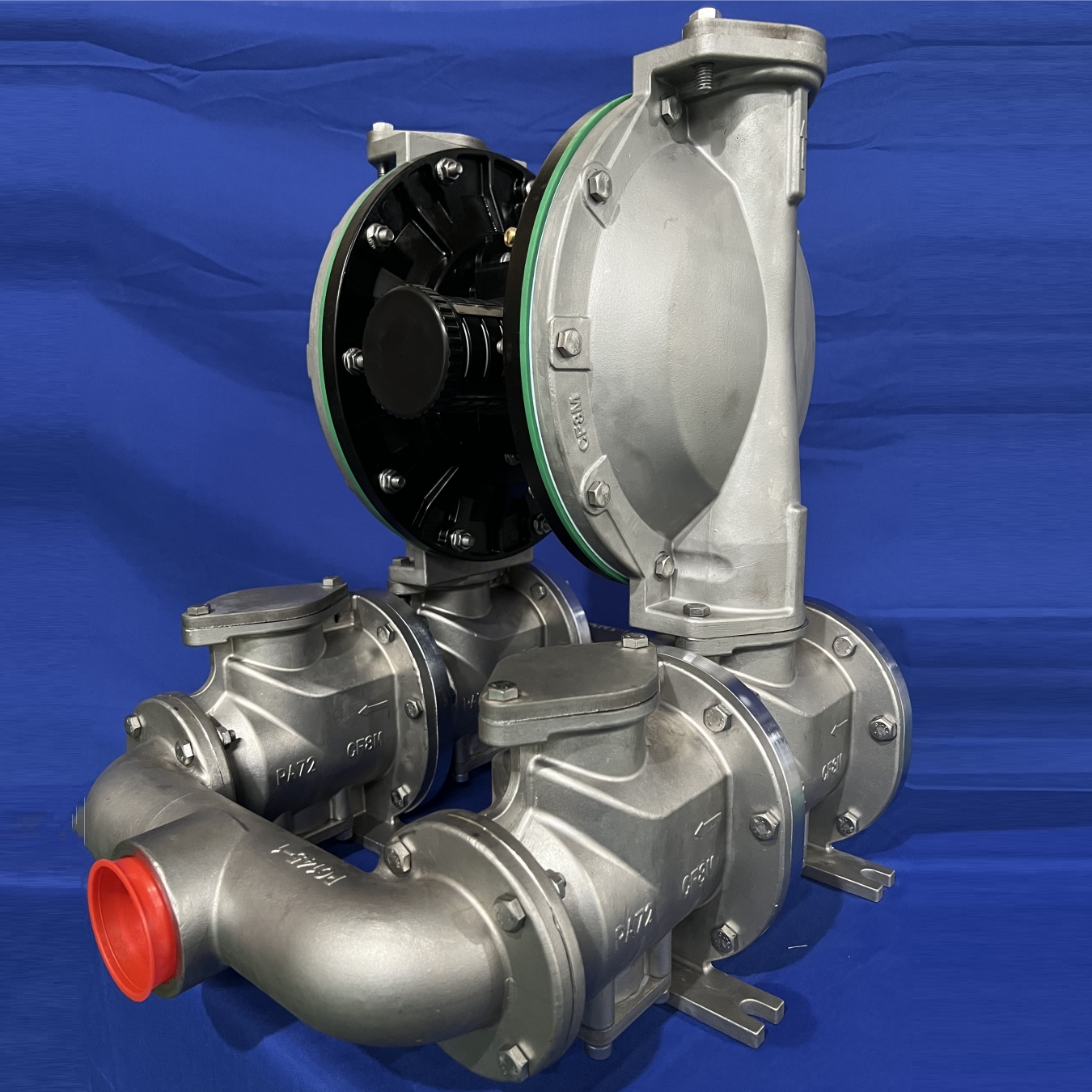

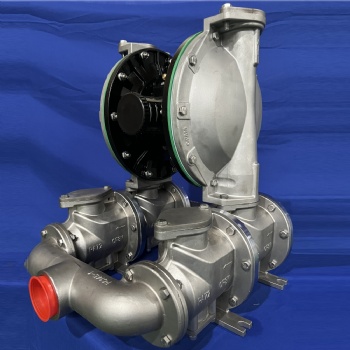

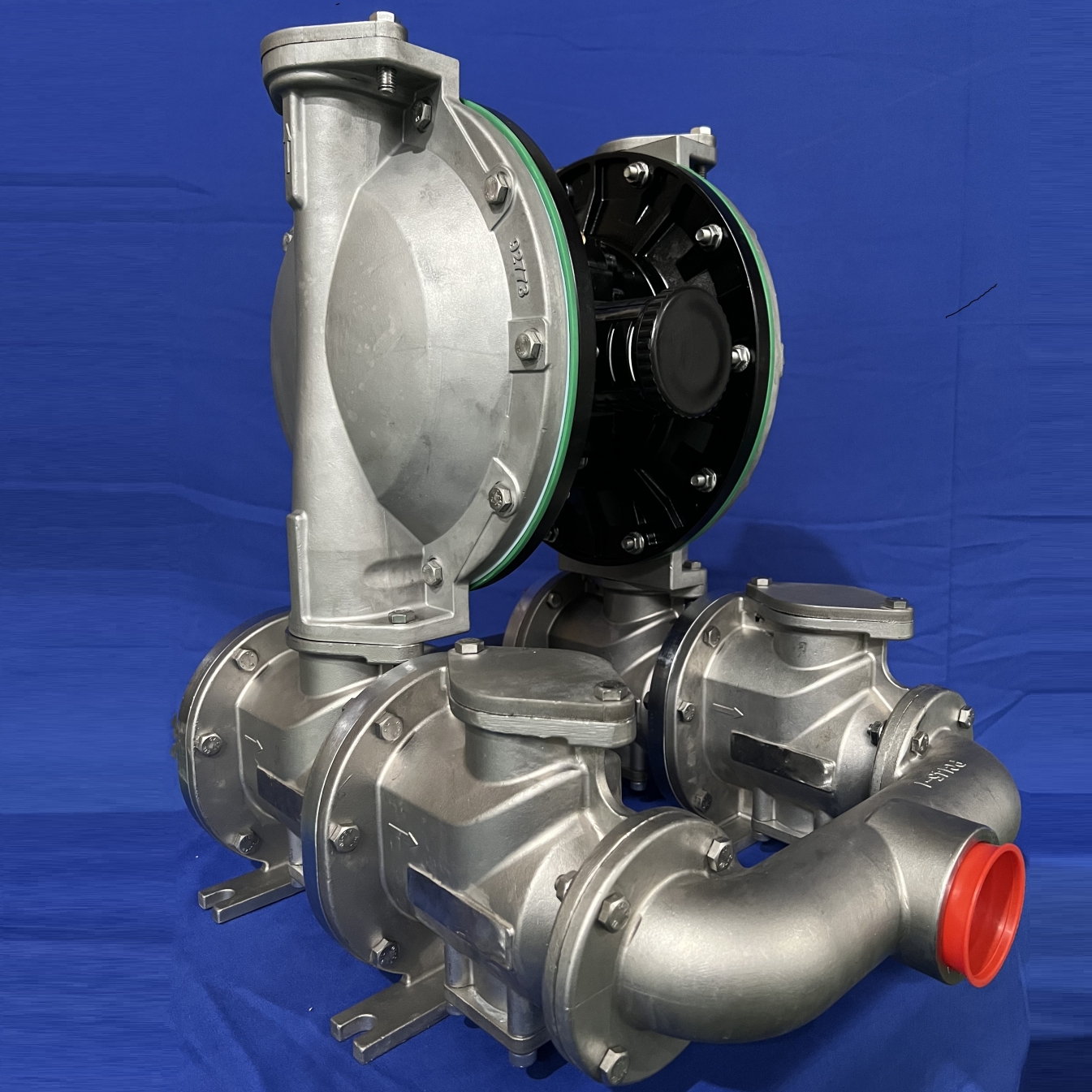

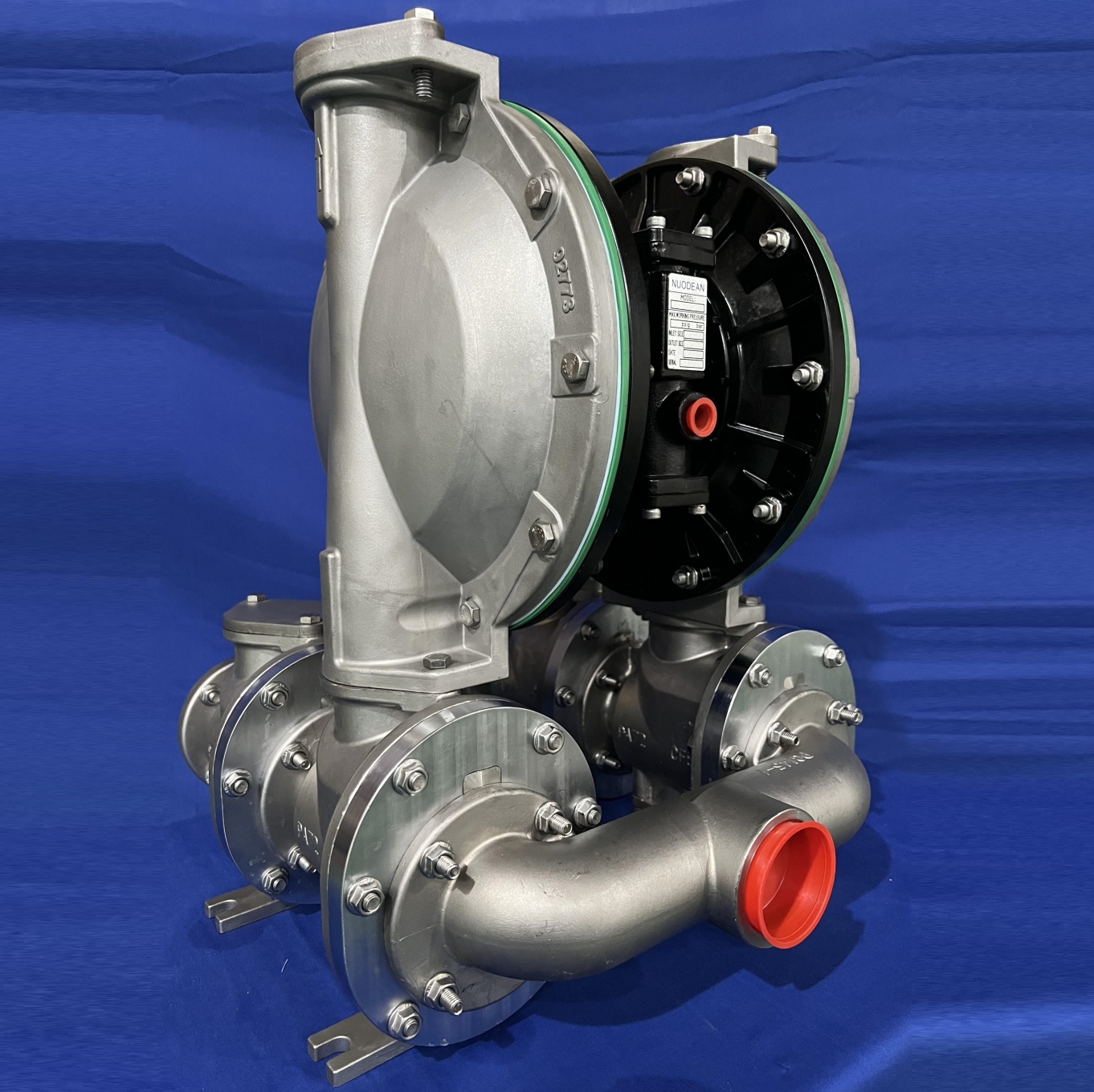

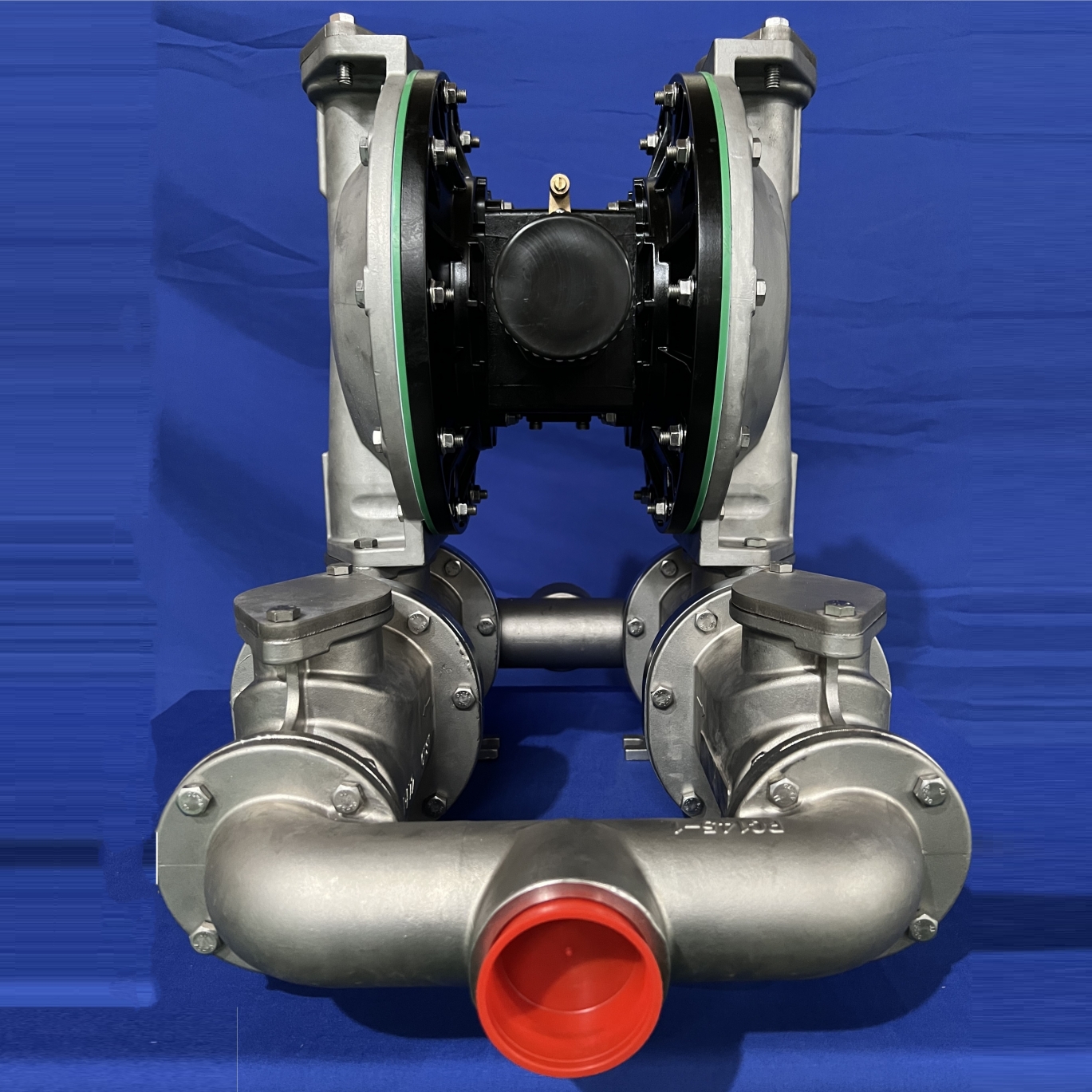

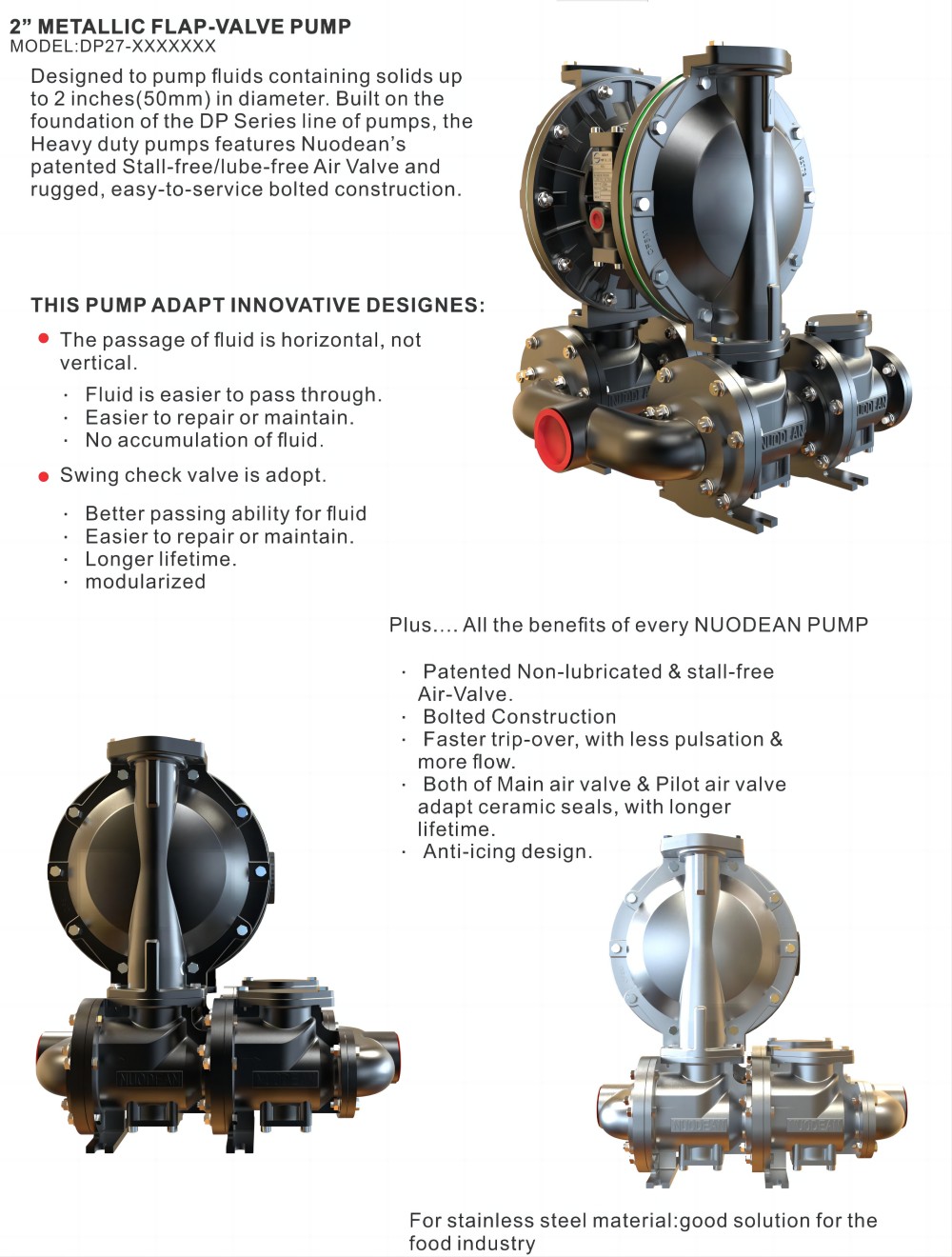

2" Heavy Duty Flap-Valve Pump

Video of 2" Stainless Steel Flap-Valve Pump 01

Video of 2" Stainless Steel Flap-Valve Pump 02

Video of 2" Stainless Steel Flap-Valve Pump 03

The Nuodean’s Heavy duty Flap-valve pump is designed to pump fluids containing solids up to 2 inches(50mm) in diameter. Built on the foundation of the DP Series line of pumps, the Heavy duty pumps features Nuodean’s patented Stall-free/lube-free Air Valve and rugged, easy-to-service bolted construction.

THIS PUMP ADAPT INNOVATIVE DESIGNES:

• 1. Full Bore Design.

• Permitting passage of big solids.


•


• 2. The passage of fluid is horizontal, not vertical.

1. Fluid is easier to pass through.

2. Easier to repair or maintain.

3. No accumulation of fluid.

• 3. Swing check valve is adopt.

1. Better passing ability for fluid

2. Easier to repair or maintain.

3. Longer lifetime.

4. modularized

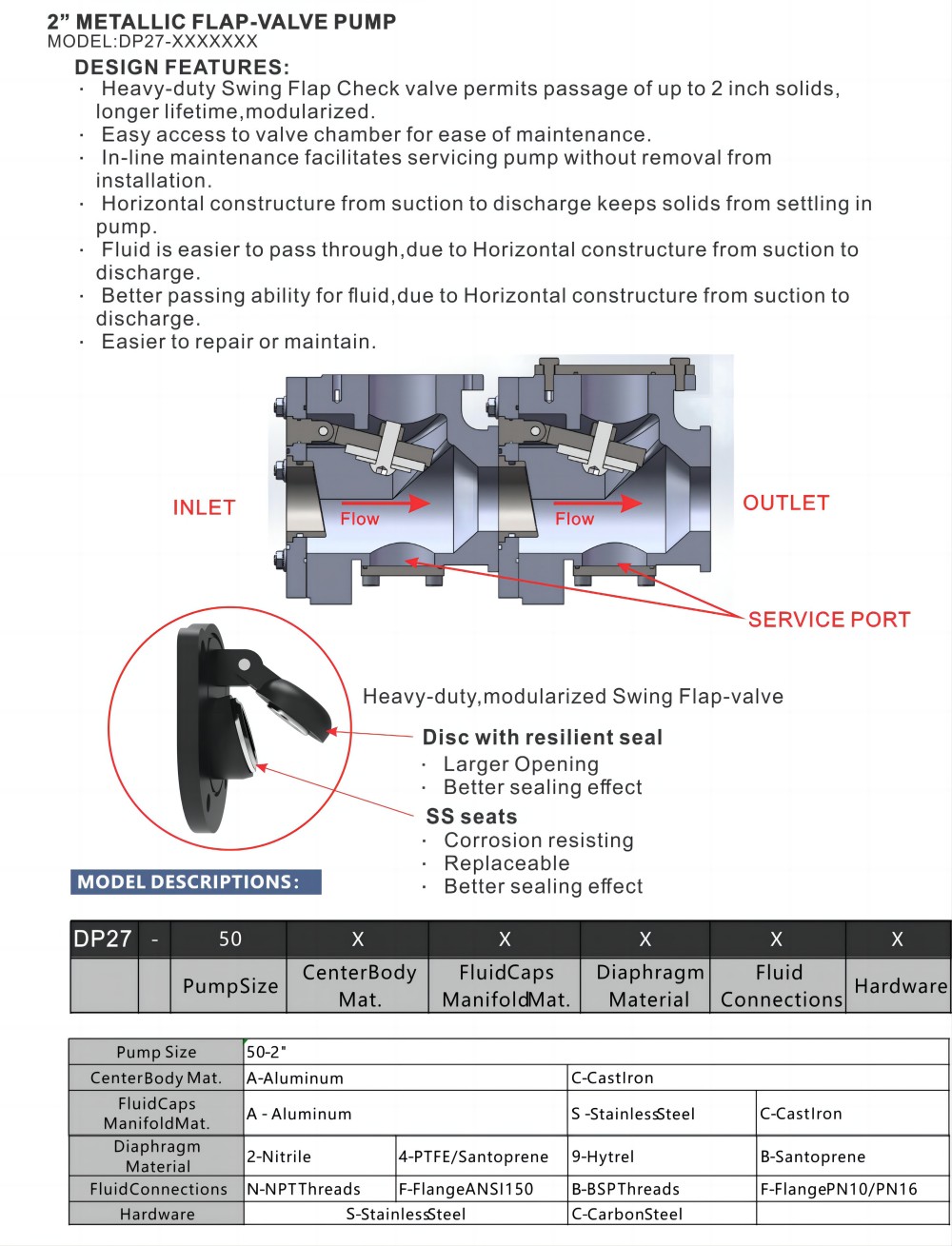

5. Design Features:

6. Heavy-duty Swing Flap Check valve permits passage of up to 2 inch solids, longer lifetime,modularized.

7. Easy access to valve chamber for ease of maintenance.

8. In-line maintenance facilitates servicing pump without removal from installation.

9. Horizontal constructure from suction to discharge keeps solids from settling in pump.

10. Fluid is easier to pass through,due to Horizontal constructure from suction to discharge.

11. Better passing ability for fluid,due to Horizontal constructure from suction to discharge.

12. Easier to repair or maintain.




    ---



    ---



    ---
